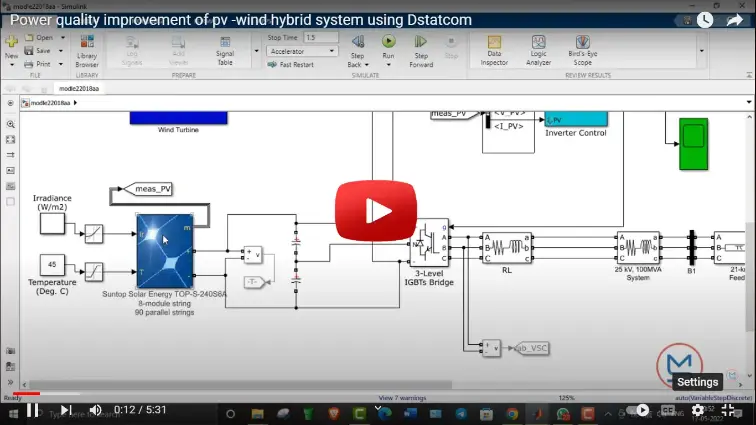

Power quality improvement of pv -wind hybrid system using Dstatcom

Abstract

Implementation of renewable energy sources such as wind and photovoltaic systems into distribution systems always tends to improve the reliability of the power grid. Implementation of statcom in the distribution system connected with the grid is to compensate the issues such as voltage sag, load changes, and distortion to improve power quality. Generally, statcom is used to provide reactive power whenever required, it can control the voltage dip whenever drastic disturbances occur. On other hand, there are two renewable sources such as photovoltaic system which varies according to the temperature and irradiance values and in case of pmsg based wind turbine depends upon the velocity of the wind. It is seen that power quality is significant field of worry for power engineers now days. Power quality of supply is of most extreme significance for the utilities to accomplish worldwide advantages. Various kinds of custom devices are installed and examined to further improve the power quality. As the significant interruption to clients is brought about by failure in the distribution framework, thus, more consideration is given to the evacuation of voltage sags, Swell, and harmonics at the distribution end. In order to improve the quality of power, a custom power device called DSTATCOM is used and the significant objective of this work to examine the model of DSTATCOM alongside its controller. To examine the performance of DSTATCOM utilizing dqo change control plot for various loads like dynamic load and nonlinear load and the results are obtained by using MATLAB/ SIMULINK.

Introduction

Electrical power distribution and its enhancement this system plays important role in the synchronization of the system that supports commercial, residential, and industrial facilities. These networks are continually advancing, which is driven by a requirement for age-related restoration, use of spotless and inexhaustible wellsprings of energy, power industry liberation, what's more, expanded or diminished interest . These issues have brought about proposing new structures, gadgets, control frameworks, the executive’s strategies, and even power dispersion framework rebuilding, where in some cases new organization design has been proposed or now and then new gadgets have been introduced. Additionally, in later a long time, the establishment of photovoltaic cells (PVs) has been fundamentally expanded, which strongly affects outspread circulation organizations. Hence it is a need to look at the inexhaustible reconciliation issues for effective and safe force framework activity and upkeep while monitoring modernization. For sustainable development and social advancement, it is important to meet the energy need by using environmentally friendly power assets like breeze, biomass, hydro and so forth In a manageable energy framework, energy preservation and the utilization of inexhaustible sources are the key worldviews. The need to coordinate the inexhaustible energy like wind energy into a power framework is to make it conceivable to limit the natural effect on traditional plants .

The integration of wind energy into the existing force framework presents a specialized difficulty furthermore, that requires thought of voltage guidelines, steadiness, power quality issues. The power quality is a basic client-centered measure and is enormously influenced by the activity of a distribution and transmission system. The issue of intensity quality is of extraordinary significance to the wind turbine . There has been a broad development and speedy advancement in the abuse of wind energy as of late. The individual units can be of huge limit up to 2 MW, feeding into distribution close network, especially with clients associated in proximity. Today, over 28 000 wind-creating turbines are effectively working all over the world. In the fixed-speed wind turbine activity, all the change in the wind speed is sent as variances in the mechanical power, electrical power on the lattice and prompts huge voltage changes. During the typical activity, the wind turbine creates a persistent variable output power. These power varieties are predominantly brought about by the impact of turbulence, wind shear, and tower shadow, and control framework in the force framework. Accordingly, the network needs to oversee such changes. The force quality issues can be seen concerning the breeze age, transmission, and circulation organization, for example, voltage hang, swells, flickers as well as harmonics.
