How to completely extract the green pixels from this image?

M
Malini · Jan 10, 2024 · 2.1K views
Question
I have used this code to extract only the plant canopy.   inimage = imread('AA100401.jpg'); %// type uint8 mask = inimage(:,:,1)
Expert Answer
Profile picture of Prashant Kumar
Prashant Kumar PhD Expert
Answered Aug 20, 2026

Try the Color Thresholder on the Apps tab of the tool ribbon. Use HSV color space, then click the Export function button on the tool ribbon.



clc;    % Clear the command window.
close all;  % Close all figures (except those of imtool.)
clear;  % Erase all existing variables. Or clearvars if you want.
workspace;  % Make sure the workspace panel is showing.
format long g;
format compact;
fontSize = 16;
markerSize = 20;
%--------------------------------------------------------------------------------------------------------
%    READ IN TEST IMAGE
folder = pwd;
baseFileName = 'Malini.webp';
fullFileName = fullfile(folder, baseFileName);
% Check if file exists.
if ~isfile(fullFileName)
    % The file doesn't exist -- didn't find it there in that folder.
    % Check the entire search path (other folders) for the file by stripping off the folder.
    fullFileNameOnSearchPath = baseFileName; % No path this time.
    if ~exist(fullFileNameOnSearchPath, 'file')
        % Still didn't find it.  Alert user.
        errorMessage = sprintf('Error: %s does not exist in the search path folders.', fullFileName);
        uiwait(warndlg(errorMessage));
        return;
    end
end
rgbImage = imread(fullFileName);
%--------------------------------------------------------------------------------------------------------

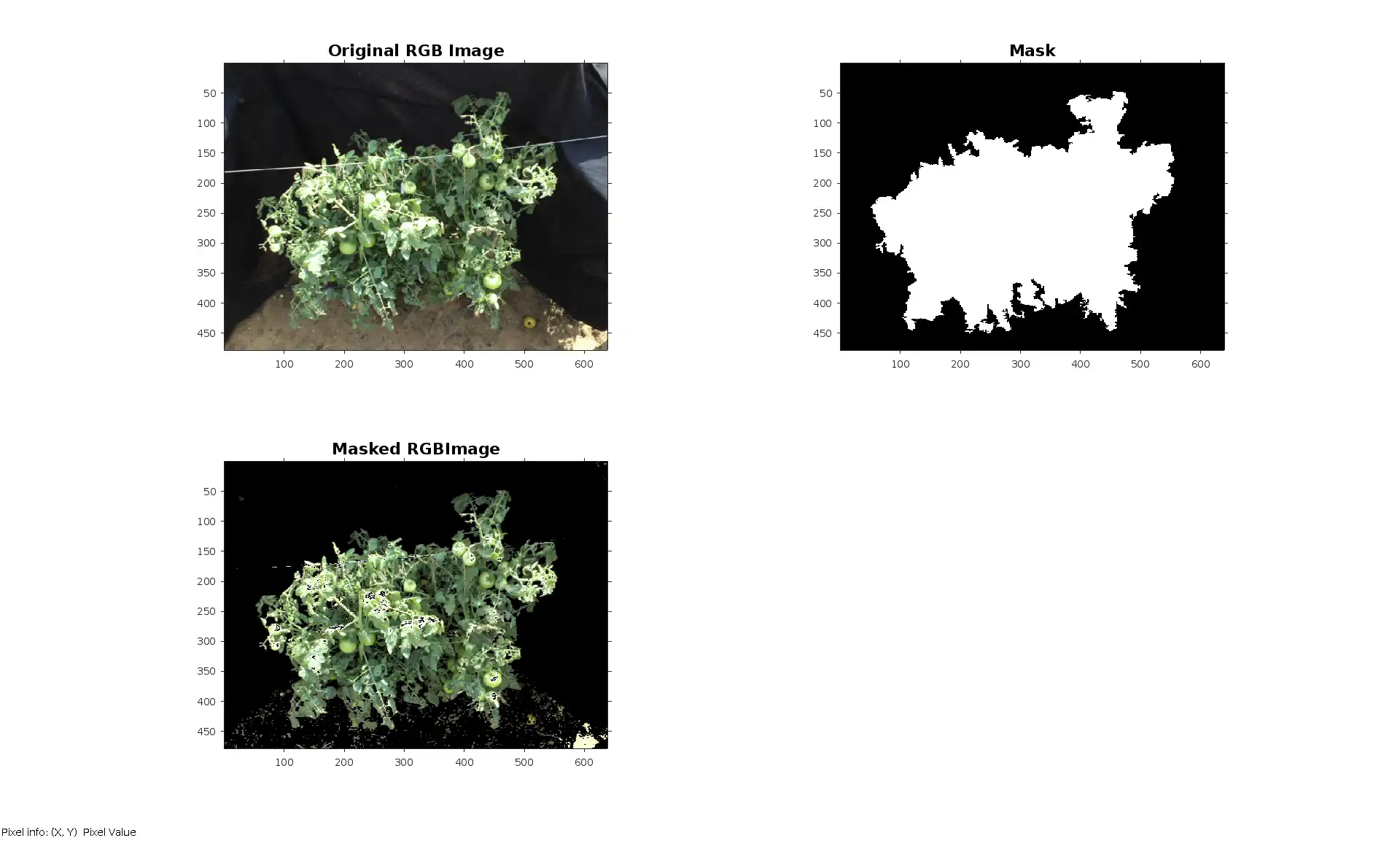

% Display the image.
subplot(2, 2, 1);
imshow(rgbImage, []);
impixelinfo;
axis('on', 'image');
title('Original RGB Image', 'FontSize', fontSize, 'Interpreter', 'None');
% Update the dimensions of the image.
% numberOfColorChannels should be = 1 for a gray scale image, and 3 for an RGB color image.
[rows, columns, numberOfColorChannels] = size(rgbImage)
rows =    478
columns =    639
numberOfColorChannels =      3





% Maximize window.
g = gcf;
g.WindowState = 'maximized';
g.Name = 'Demo by Image Analyst';
g.NumberTitle = 'off';
drawnow;
%--------------------------------------------------------------------------------------------
% Threshold image.
[mask,maskedRGBImage] = createMask(rgbImage);
% Fill holes.
mask = imfill(mask, 'holes');
% Take largest blob.
mask = bwareafilt(mask, 1);
subplot(2, 2, 2);
imshow(mask)
impixelinfo;
axis('on', 'image');
title('Mask', 'FontSize', fontSize, 'Interpreter', 'None');
drawnow;
subplot(2, 2, 3);
imshow(maskedRGBImage)
impixelinfo;
axis('on', 'image');
title('Masked RGBImage', 'FontSize', fontSize, 'Interpreter', 'None');



drawnow;
%================================================================================================
function [BW,maskedRGBImage] = createMask(RGB)
%createMask  Threshold RGB image using auto-generated code from colorThresholder app.
%  [BW,MASKEDRGBIMAGE] = createMask(RGB) thresholds image RGB using
%  auto-generated code from the colorThresholder app. The colorspace and
%  range for each channel of the colorspace were set within the app. The
%  segmentation mask is returned in BW, and a composite of the mask and
%  original RGB images is returned in maskedRGBImage.
% Auto-generated by colorThresholder app on 08-Jan-2024
%------------------------------------------------------
% Convert RGB image to chosen color space
I = rgb2hsv(RGB);
% Define thresholds for channel 1 based on histogram settings
channel1Min = 0.128;
channel1Max = 0.458;
% Define thresholds for channel 2 based on histogram settings
channel2Min = 0.000;
channel2Max = 1.000;
% Define thresholds for channel 3 based on histogram settings
channel3Min = 0.167;
channel3Max = 1.000;
% Create mask based on chosen histogram thresholds
sliderBW = (I(:,:,1) >= channel1Min ) & (I(:,:,1) <= channel1Max) & ...
    (I(:,:,2) >= channel2Min ) & (I(:,:,2) <= channel2Max) & ...
    (I(:,:,3) >= channel3Min ) & (I(:,:,3) <= channel3Max);
BW = sliderBW;
% Initialize output masked image based on input image.
maskedRGBImage = RGB;
% Set background pixels where BW is false to zero.
maskedRGBImage(repmat(~BW,[1 1 3])) = 0;
end
