Salah asked . 2023-01-10

Why i am getting an empty plot?

%% i have this 4x18 matrix, and i want to plot the function resulting from each coloumn vs the number of coloumn

N = [1.551e-5 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 9.6105e-4 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011;
    0.0062 0.0061 0.0061 0.0060 0.0061 0.0060 0.0062 0.0061 0.0061 0.0062 0.0063 0.0062 0.0061 0.0051 0.0051 0.0055 0.0062 0.0062;
    1.849e-5  2.3555e-4 7.1714e-4 0.0010 9.6128e-4 1.353e-4 4.1244e-4 1.9515e-4 1.3432e-4 4.9407e-4 1.6306e-4 8.6313e-4 5.9316e-4 3.4377e-4 2.2194e-4 2.8530e-4 8.2608e-4 7.0808e-4;
    0.005 0.0035 0.0069 0.006 0.0069 0.0029 0.0055 0.0030 0.0029 0.0055 0.0035 0.0059 0.0044 0.0045 0.0034 0.0032 0.0049 0.0067];
for i=1:18
    Cc= N(1,i);
    Cf= N(2,i);
    Lc= N(3,i);
    Lf= N(4,i);
    R = 50;
    DutyC=0.76;
    Vo=500;
    s=tf('s');
    dp = 1-DutyC;
    w1 = -Lc;
    w2 = dp*R;
    u1 = Lc*Cc*R;
    u2 = Lc;
    u3 = (dp^2)*R;
    x1 = Lf*Cf*(Lc^2)*dp*R*Cc;
    x2 = (Lf+Lc*dp*R-(dp^2)*R*Lf*Cf)*Lc*Cc+(Lc^2)*Lf*Cf*dp*R;
    x3 = (Lf+Lc*dp*R-(dp^2)*R*Lf*Cf)*Lc+Lf*Cf*Lc*(dp^3)*(R^2);
    x4 = (Lf+Lc*dp*R-(dp^2)*R*Lf*Cf)*(dp^2)*R-(dp^2)*R*Lc;
    x5 = -(dp^4)*(R^2);
    y1 = Lc*Cc*Lf*Cf;
    y2 = Lc*Cc + Lc*Lf*Cf;
    y3 = Lc+Lf+Lf*Cf*(dp^2)*R;
    y4 = R*(dp^2);
    Gvd = (Vo*(s*w1 + w2)*((s^4)*x1+(s^3)*x2+(s^2)*x3+s*x4+x5))/(dp*((s^2)*u1+s*u2+u3)*((s^3)*y1+(s^2)*y2+s*y3+y4));
    w = logspace(-1,3,100);
    H = freqresp(Gvd,w);
    objective = -20*log(abs(H));
    g = min(objective);
    plot(i,g)
end

plot , matrix_with_loop , MATLAB , Graphics , Formatting and Annotation

Expert Answer

Kshitij Singh answered . 2024-12-13 18:18:42

You get an empty plot because you are plotting one point at a time (g and i are scalars). A line with one point doesn't show up without a data marker. To get a non-empty plot, use a data marker, or (better) collect the values of g in a vector and plot them together after the loop:

g = zeros(1,18); % pre-allocate vector g

N = [1.551e-5 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 9.6105e-4 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011;
    0.0062 0.0061 0.0061 0.0060 0.0061 0.0060 0.0062 0.0061 0.0061 0.0062 0.0063 0.0062 0.0061 0.0051 0.0051 0.0055 0.0062 0.0062;
    1.849e-5  2.3555e-4 7.1714e-4 0.0010 9.6128e-4 1.353e-4 4.1244e-4 1.9515e-4 1.3432e-4 4.9407e-4 1.6306e-4 8.6313e-4 5.9316e-4 3.4377e-4 2.2194e-4 2.8530e-4 8.2608e-4 7.0808e-4;
    0.005 0.0035 0.0069 0.006 0.0069 0.0029 0.0055 0.0030 0.0029 0.0055 0.0035 0.0059 0.0044 0.0045 0.0034 0.0032 0.0049 0.0067];
for i=1:18
Cc= N(1,i);
Cf= N(2,i);
Lc= N(3,i);
Lf= N(4,i);
R = 50;
DutyC=0.76;
Vo=500;
s=tf('s');
dp = 1-DutyC;
w1 = -Lc;
w2 = dp*R;
u1 = Lc*Cc*R;
u2 = Lc;
u3 = (dp^2)*R;
x1 = Lf*Cf*(Lc^2)*dp*R*Cc;
x2 = (Lf+Lc*dp*R-(dp^2)*R*Lf*Cf)*Lc*Cc+(Lc^2)*Lf*Cf*dp*R;
x3 = (Lf+Lc*dp*R-(dp^2)*R*Lf*Cf)*Lc+Lf*Cf*Lc*(dp^3)*(R^2);
x4 = (Lf+Lc*dp*R-(dp^2)*R*Lf*Cf)*(dp^2)*R-(dp^2)*R*Lc;
x5 = -(dp^4)*(R^2);
y1 = Lc*Cc*Lf*Cf;
y2 = Lc*Cc + Lc*Lf*Cf;
y3 = Lc+Lf+Lf*Cf*(dp^2)*R;
y4 = R*(dp^2);
Gvd = (Vo*(s*w1 + w2)*((s^4)*x1+(s^3)*x2+(s^2)*x3+s*x4+x5))/(dp*((s^2)*u1+s*u2+u3)*((s^3)*y1+(s^2)*y2+s*y3+y4));
w = logspace(-1,3,100);
H = freqresp(Gvd,w);
objective = -20*log(abs(H));
g(i) = min(objective); % store the result as the i-th element of the vector g
% plot(i,g)
end

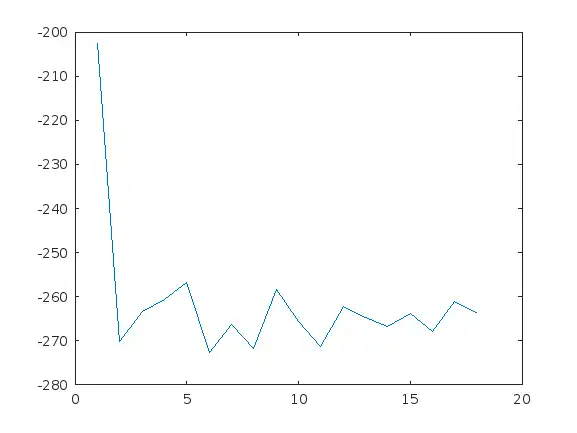

plot(g) % or plot(1:18,g)

Empty Plot
