Antti asked . 2023-05-18

How can I convert a ROS Image topic into an matrix that I can process in Simulink?

I am trying to find a simple way of converting images received from ROS into matrix form that can then be processed in Simulink. On Matlab side there are the writeImage and readImage functions that can be used to convert ROS Image to matlab image but I am not sure what should be the correct way of doing this on Simulink side.

One option would be to get the raw data from Image topic and reorganize it into matrix form, but that processing is always dependent on the image size and format. Is there any simple way of doing this?

ros , sensor_msgs/image , Robotics and Autonomous Systems , ROS Toolbox

Expert Answer

Prashant Kumar answered . 2024-12-21 01:28:58

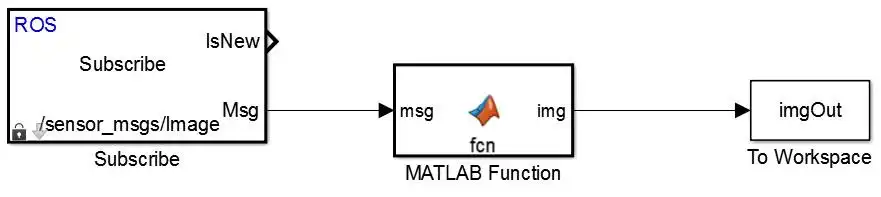

You are correct that readImage and writeImage functions are for MATLAB use only since they work on ROS topic objects. However in Simulink we work with buses. The straight forward way that I could think of to deal with this is to unpack the image on your own in a MATLAB function block. So you could have a model like this:

convert a ROS Image topic into an matrix

And inside the MATLAB function block, you could write the following function:

function img = fcn(msg)
%#codegen

%Get msg details
imgData = msg.Data;
imgH = msg.Height;
imgW = msg.Width;

%Create blank image output with required size
img = zeros(msg.Width,msg.Height,3);

%Reshape image data
imgR = reshape(imgData(1:3:end),imgW,imgH)';
imgG = reshape(imgData(2:3:end),imgW,imgH)';
imgB = reshape(imgData(3:3:end),imgW,imgH)';
img(:,:,1) = imgR;
img(:,:,2) = imgG;
img(:,:,3) = imgB;

Note that this example assumes image is in the RGB color space.
